DUCTED FAN AD EXTREMUS PART 2
LUIGI STIPA’S INTUBED PROPELLER concept may have been derided as the “flying barrel,” but Stipa had done his homework. Here in Part 2, we’ll see whether theory translated into practice. Briefly, it didn’t, and it did.
Flight Testing. The Stipa-Caproni first flew on October 7, 1932. Indeed, just as Stipa had calculated, it was reported that the intubed prop increased the engine’s efficiency. What’s more, additional lift of the duct’s airfoil allowed a very low landing speed of only 42 mph. The lift gave the Stipa-Caproni a higher rate of climb than other aircraft of similar power and wing loading. The aircraft also proved noticeably quieter than others of the era.

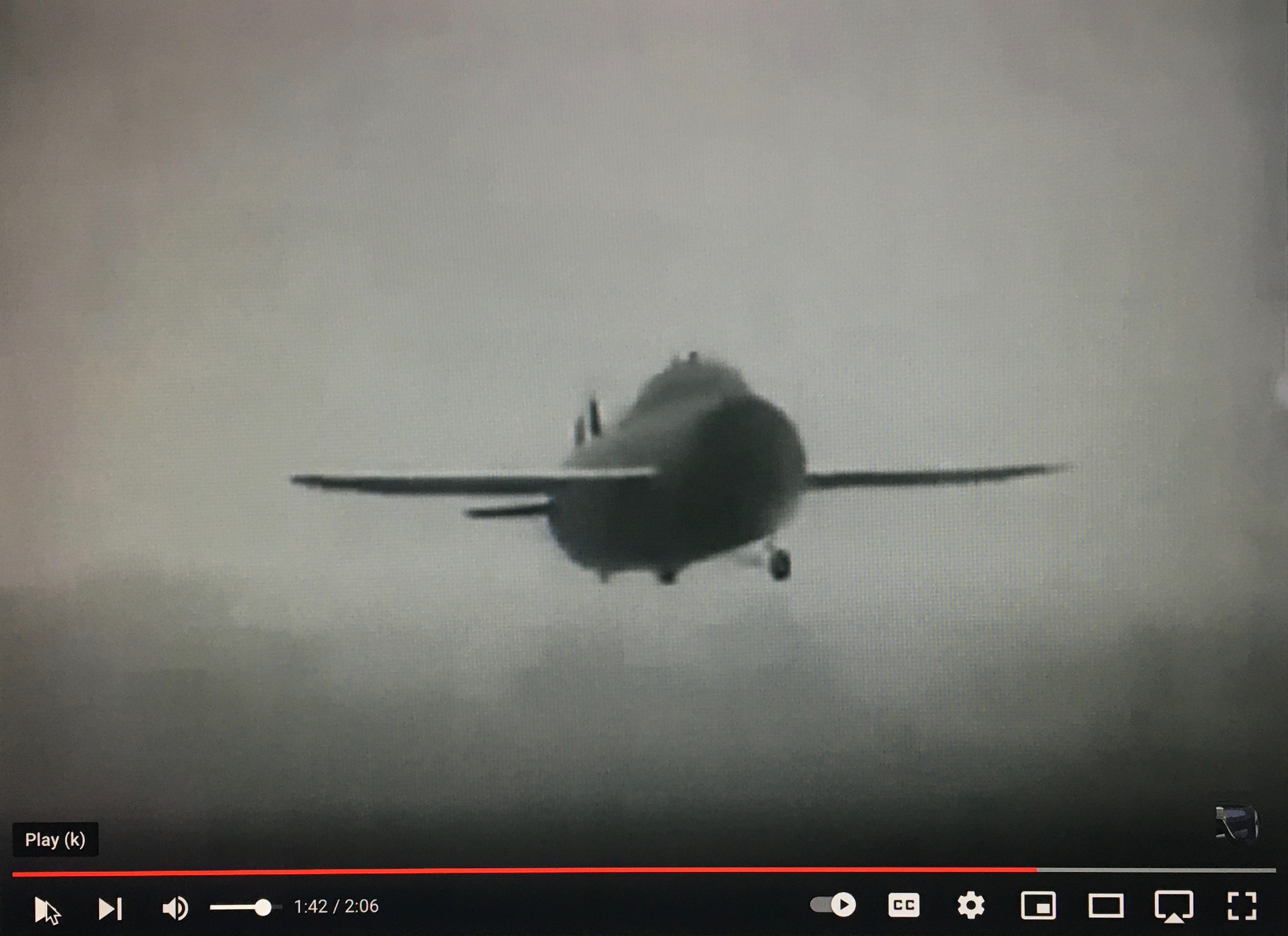

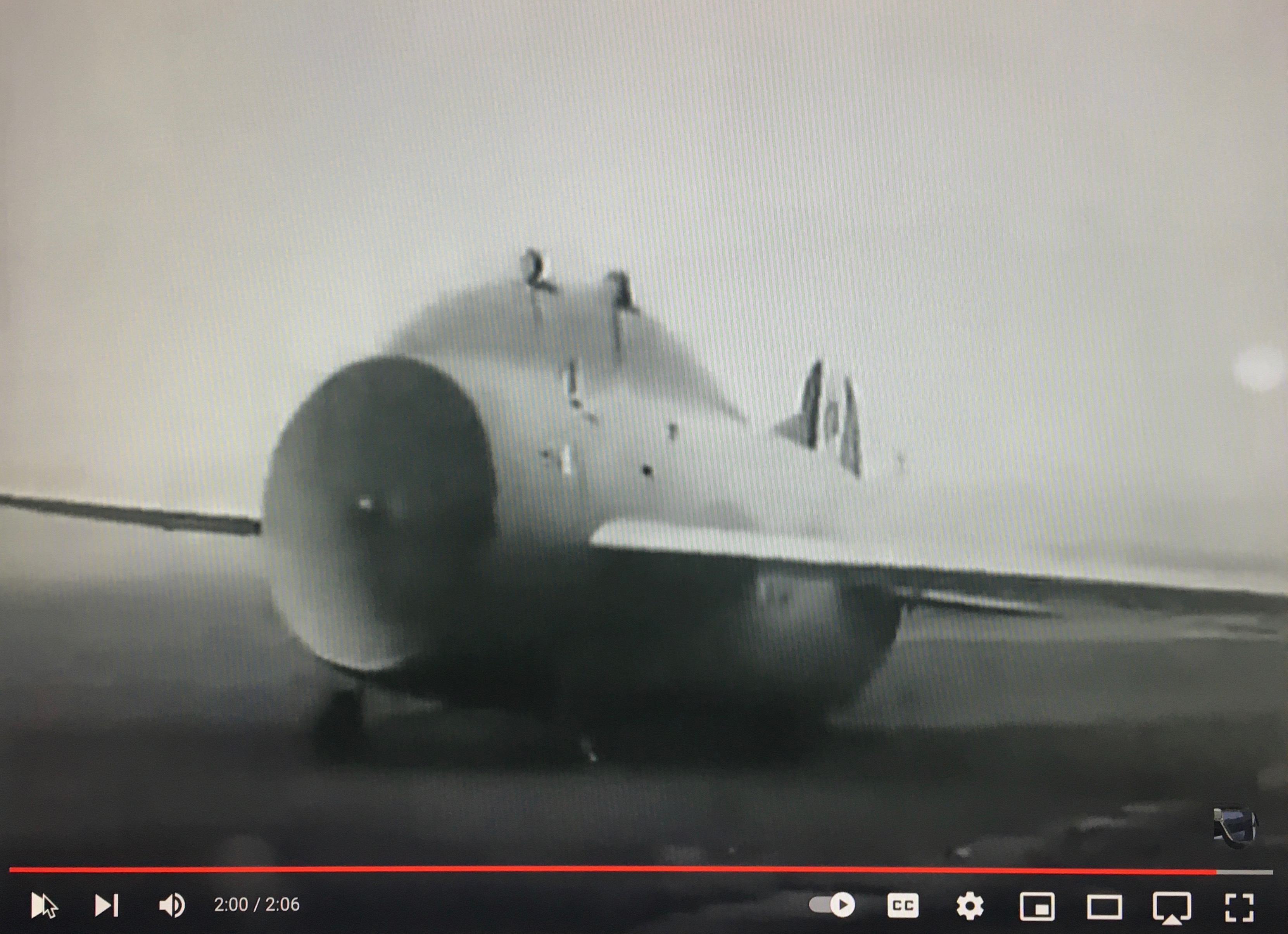

Quite amazingly, there’s film footage of this experimental aircraft in testing.
On the other hand, the design invoked aerodynamic drag to the point of cancelling out its engine’s efficiency: Top speed proved to be a mediocre 81 mph.
Pilots reported that the Stipa-Caproni was extremely stable; indeed, so much so that it was difficult to change course.
The Regia Aeronautica cancelled further development; nor was the envisioned flying wing ever built. The latter’s powerplants would have been embedded in multiple ducts within its giant wing, thus mitigating the drag of the Stipa-Caproni’s fuselage.

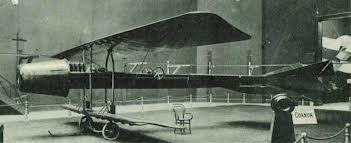

Other Ducted Fans. The ducted fan concept was not unique to Stipa. For example, Henri Coandă may have flown a ducted-fan biplane in 1910.

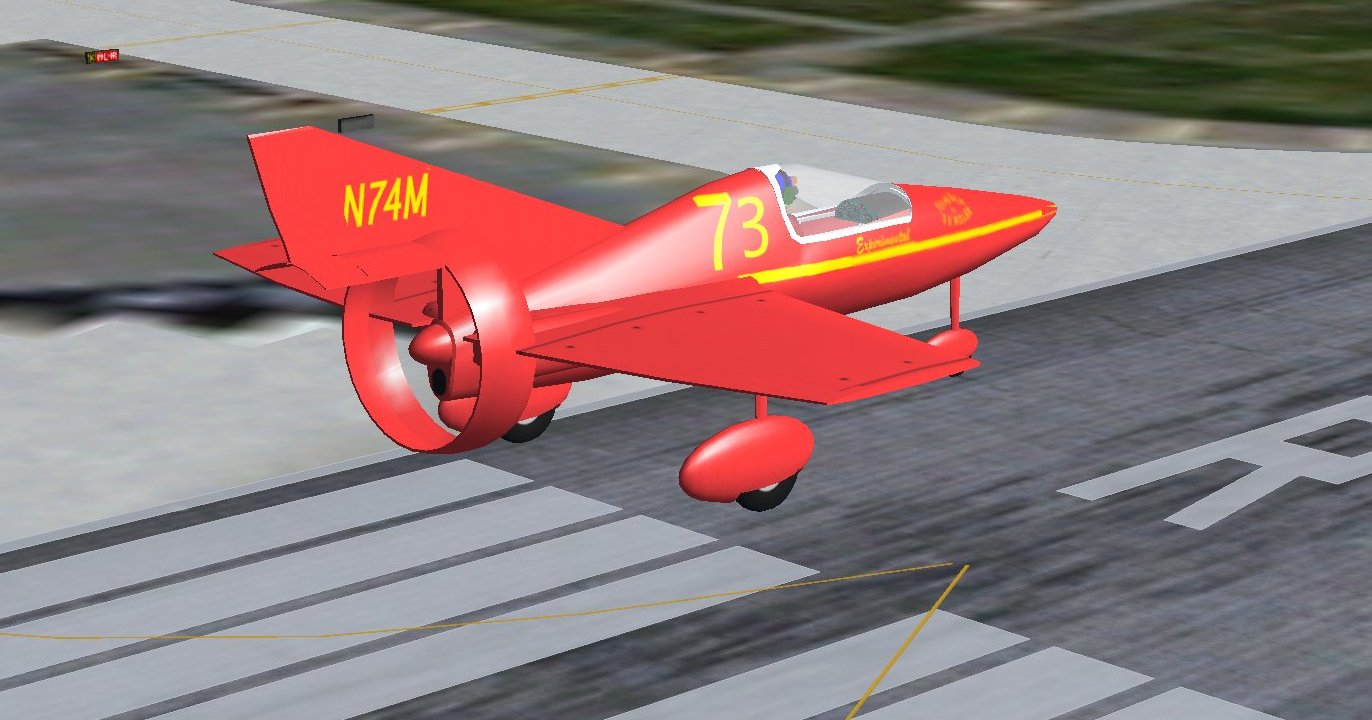

Others of my GMax projects were also ducted-fan propelled. Jim Miller’s Texas Gem Formula One air racer most definitely flew in ducted-fan form 1973-1975 and continued as an unducted pusher through 1986.

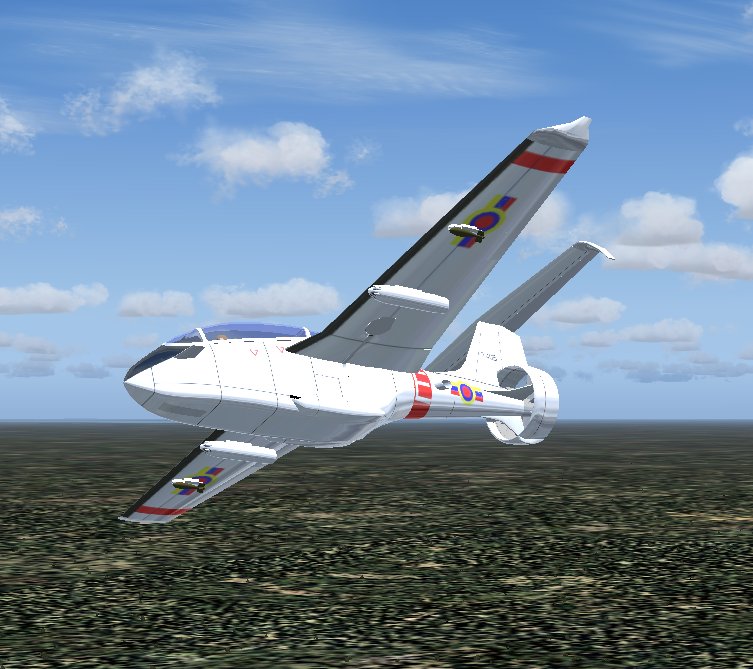

In 1981, the Mapanare I aircraft was designed by IUPFAN, Instituto Universitario Politécnico de las Fuerzas Armadas Nacionales, in Maracay, Venezuela. Its ducted fan was turbine-driven.
Wikipedia notes, “The modern turbofan engine is thought by some aviation historians to be a descendant of the “intubed propeller” demonstrated in the Stipa-Caproni.”
Last, having mentioned the giant flying wing concept, I’m reminded of the Bel Geddes’ Number 4. This airliner proposed in 1929 had its twenty engines perched above the wing. But wouldn’t this thick wing section have been a natural for intubed propulsion?
Hmm… Maybe I should consider staring at the Stipa-Caproni for hours. ds
