SENSING MY PENCHANT for GMax modeling of odd aircraft, a reader recently asked me about doing a Stipa-Caproni “Flying Barrel.”
Surely it’s one of the oddest things ever to take to the air, and I must say I am tempted. However, it does violate one of my GMax rules: “Never take on a project you wouldn’t mind staring at for hours.” Here in Parts 1 and 2 today and tomorrow are tidbits concerning this quandary.

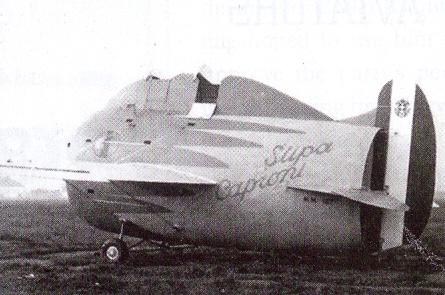

The problem is, the Stipa-Caproni is pug-ugly.
A Valid Proof-in-Concept. On the other hand, Luigi Stipa didn’t see the aircraft as a final design. Rather, it was a proof-in-concept for his “intubed propeller” idea destined for use in a multi-engine flying wing, in which it might have made sense.
As noted in Wikipedia, Stipa applied Bernoulli’s Principle in having the fuselage form a venturi tube in which the engine’s propeller would operate more efficiently than in the open.
“Stipa,” Wikipedia notes, “spent years studying the idea mathematically while working in the Engineering Division of the Italian Ministry of Air Force, eventually determining that the venturi tube’s inner surface needed to be shaped like an airfoil in order to achieve the greatest efficiency.”
Wikipedia continues, “He also determined the optimum shape of the propeller, the most efficient distance between the leading edge of the tube and the propeller, and the best rate of revolution of the propeller. Finally, he petitioned the Italian Fascist government to produce a prototype aircraft. The government, seeking to showcase Italian technological achievement —particularly in aviation— contracted the Caproni company to construct the aircraft in 1932.”
This was the same era, note, that Italo Balbo was commissioned to fly his fleet of 24 Savoia-Marchetti SM.55X flying boats from Italy to the 1933 Chicago World’s Fair.

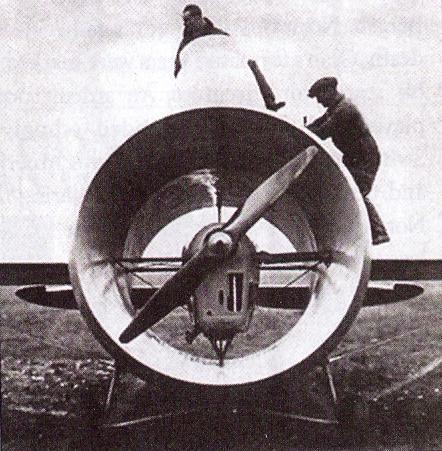

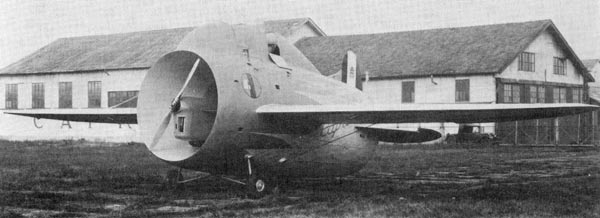

The Stipa-Caproni Design. Wikipedia notes, “The resultant aircraft was a mid-wing monoplane of mostly wooden construction dubbed the Stipa-Caproni or Caproni Stipa. The fuselage was a barrel-like tube, short and fat, open at both ends to form the tapered duct, with twin open cockpits in tandem mounted in a hump on top of it. The wings were elliptical and passed through the duct and the engine nacelle inside it.”
Wikipedia describes, “The duct itself had a profile similar to that of the airfoils, and a fairly small rudder and elevators were mounted on the trailing edge of the duct, allowing the ducted propeller wash to flow directly over them as it exited the fuselage to improve handling. The propeller was mounted inside the fuselage tube, flush with the leading edge of the fuselage, and the 120-horsepower (89-kW) de Havilland Gipsy engine that powered it was mounted within the duct behind it at the midpoint of the fuselage.”
Tomorrow in Part 2, we’ll see how the Stipa-Caproni faired in flight testing. Nor was its intubed propulsion unique, neither before nor afterward. ds
