I STUMBLE ONTO THESE THINGS in straightforward ways: Jim Donnick is editor of Vintage Sports Car, published by the Vintage Sports Car Club of America. Each issue, he selects an artful cutaway of an appropriate automotive subject; this one, the 1922 Sizaire Frères.
I knew very little about this French marque, but research revealed gallic innovation autowise, plus a downright wacky idea collaborating with the British. Here in Parts 1 and 2 today and tomorrow are tidbits on the brothers Sizaire, Maurice and Georges, and their various automotive ventures, 1905–1930.

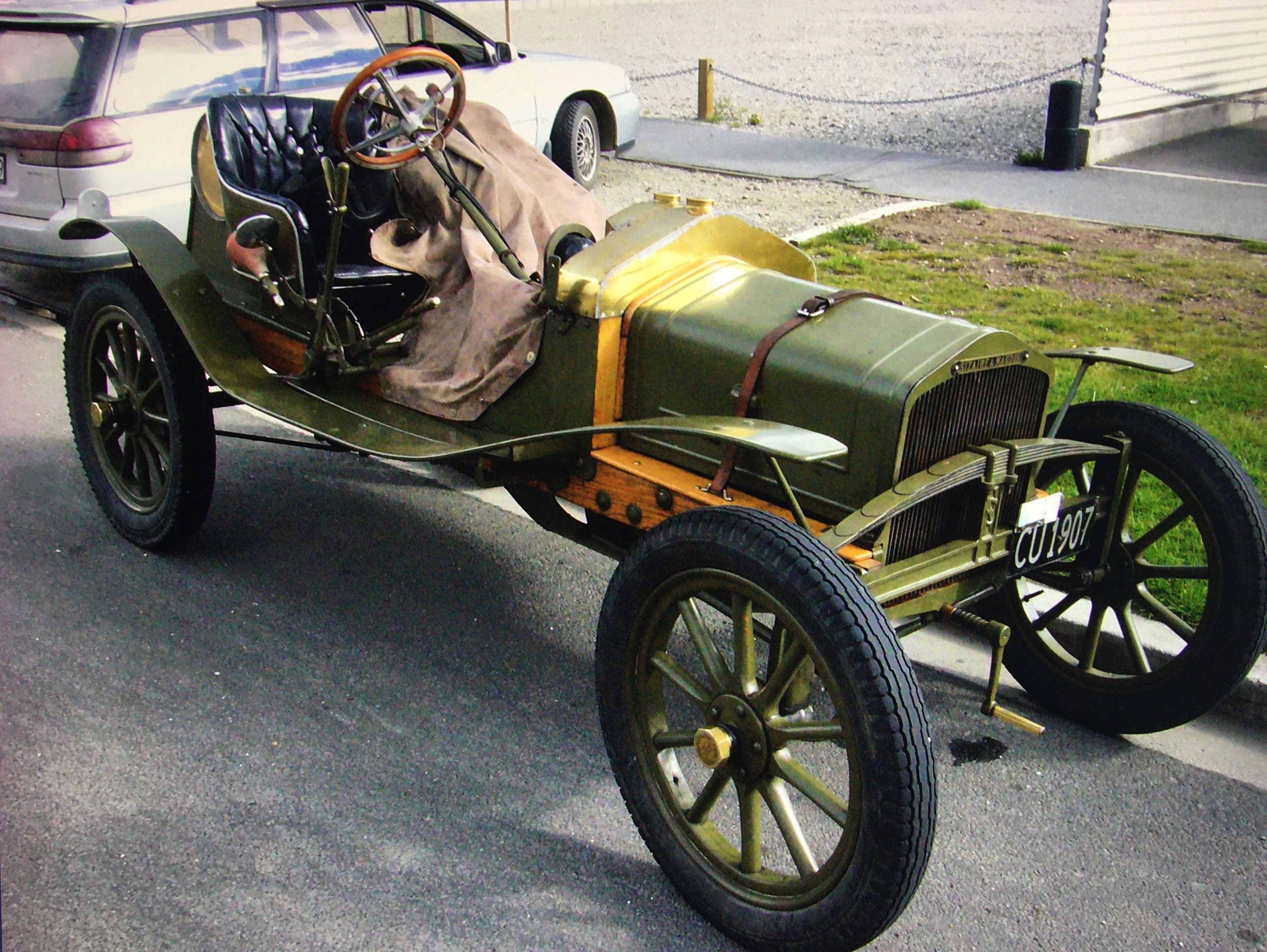

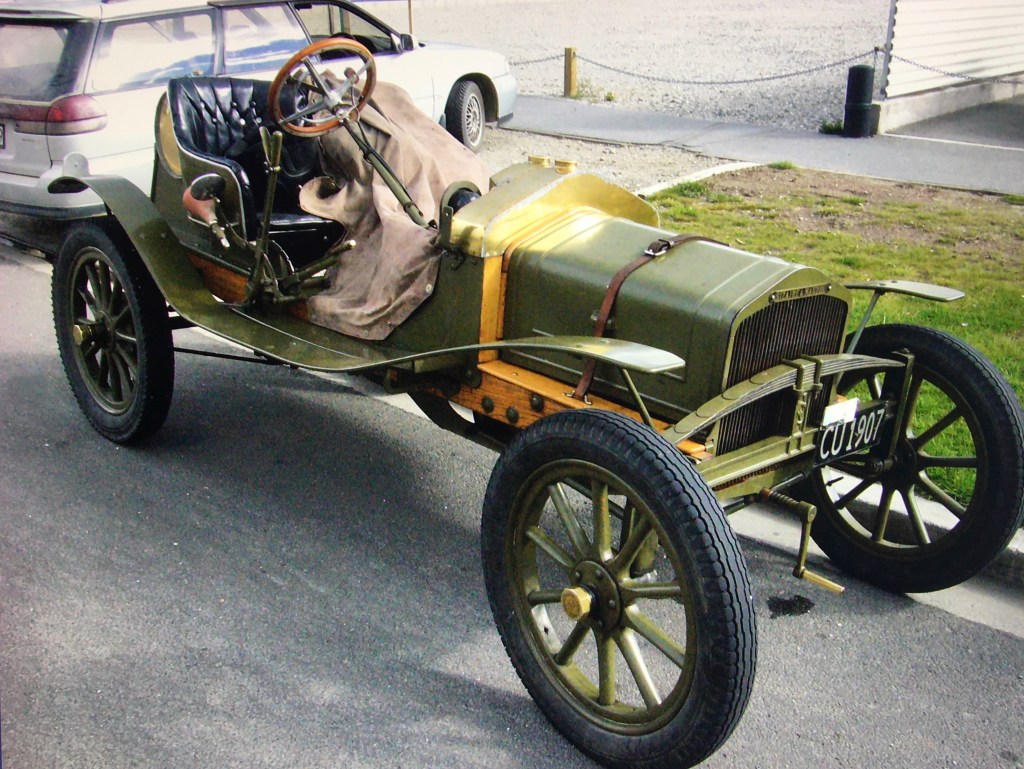

IFS by Sliding Pillars—and More. Nick Georgano’sThe Complete Encyclopedia of Motor Cars describes, “The Sizaire-Naudin was one of the pioneers of that typical French breed, the small sporting voiturette. Designed by Maurice Sizaire and built by Louis Naudin, it first appeared at the end of 1905 as a 1906 model and quickly won acclaim for cheapness, simplicity, and strength.”
Georgano noted, “… the armoured-wood frame was old fashioned. However, the independent front suspension, by transverse leaf spring and sliding pillars, had been seen only on the defunct Decauville ‘voiturelle’ and Adler, and the transmission, which provided direct drive in all 3 forward speeds by means of a propeller shaft that shifted to engage corresponding rings of teeth on the crown wheel, was entirely Sizaire-Naudin’s own.”
That is to say, entirely Maurice’s. His brother Georges looked after experimental aspects; Naudin, the builder.
Sliding pillars, of course, are associated with Morgan sports cars from their very beginning, c. 1910. They were part of Vincenzo Lancia’s innovative Lambda, 1922, as well.
Wikipedia adds a brief description of the Sizaire transmission: “A unique gearbox used an integral 3-speed differential—3 straight cut pinions brought to bear in turn on a single large straight-cut crown wheel.”

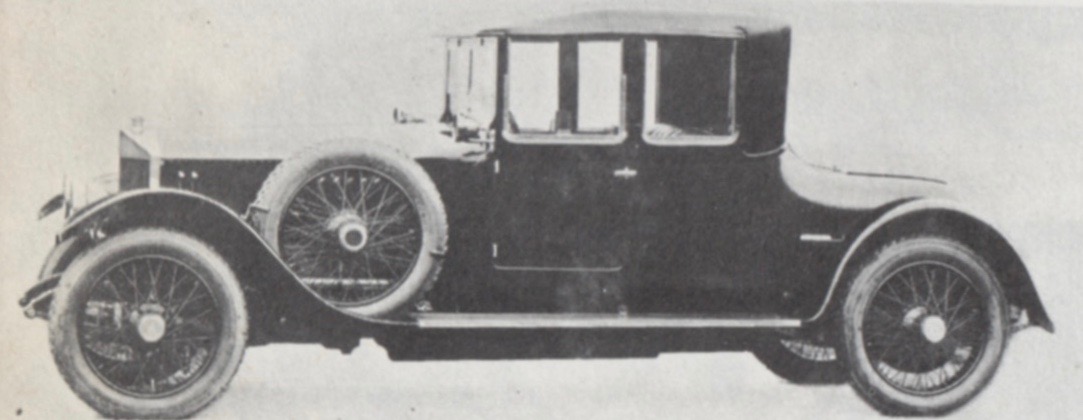

Sizaire-Berwick. In 1912, following a disagreement with an investor, the brothers Sizaire left the firm to form a joint venture with London’s F.W. Berwick and Co. Ltd. Georgano said, “Maurice designed an almost completely conventional luxury car, the Sizaire-Berwick.”
Indeed, its radiator design initiated legal proceedings from Rolls-Royce and a change to a shallow vee with a flat apex.
Apparently this pacified Rolls-Royce, though there was another adventure coming with the brothers Sizaire and the British. We’ll encounter it in Part 2, along with identifying the Vintage Sports Car cutaway subject. ds
