OUR CELL PHONES MAY FIND another use much to society’s benefit: assessing the structural integrity of bridges. Good News Network, November 4, 2022, reports, “Using the Golden Gate Bridge in San Francisco as an example, researchers showed that smartphones can capture the same kind of information about bridge vibrations picked up by stationary sensors.”

Background. The primary reason for a cell phone accelerometer is almost a trivial one: It orients the display depending on how the cell phone is held.

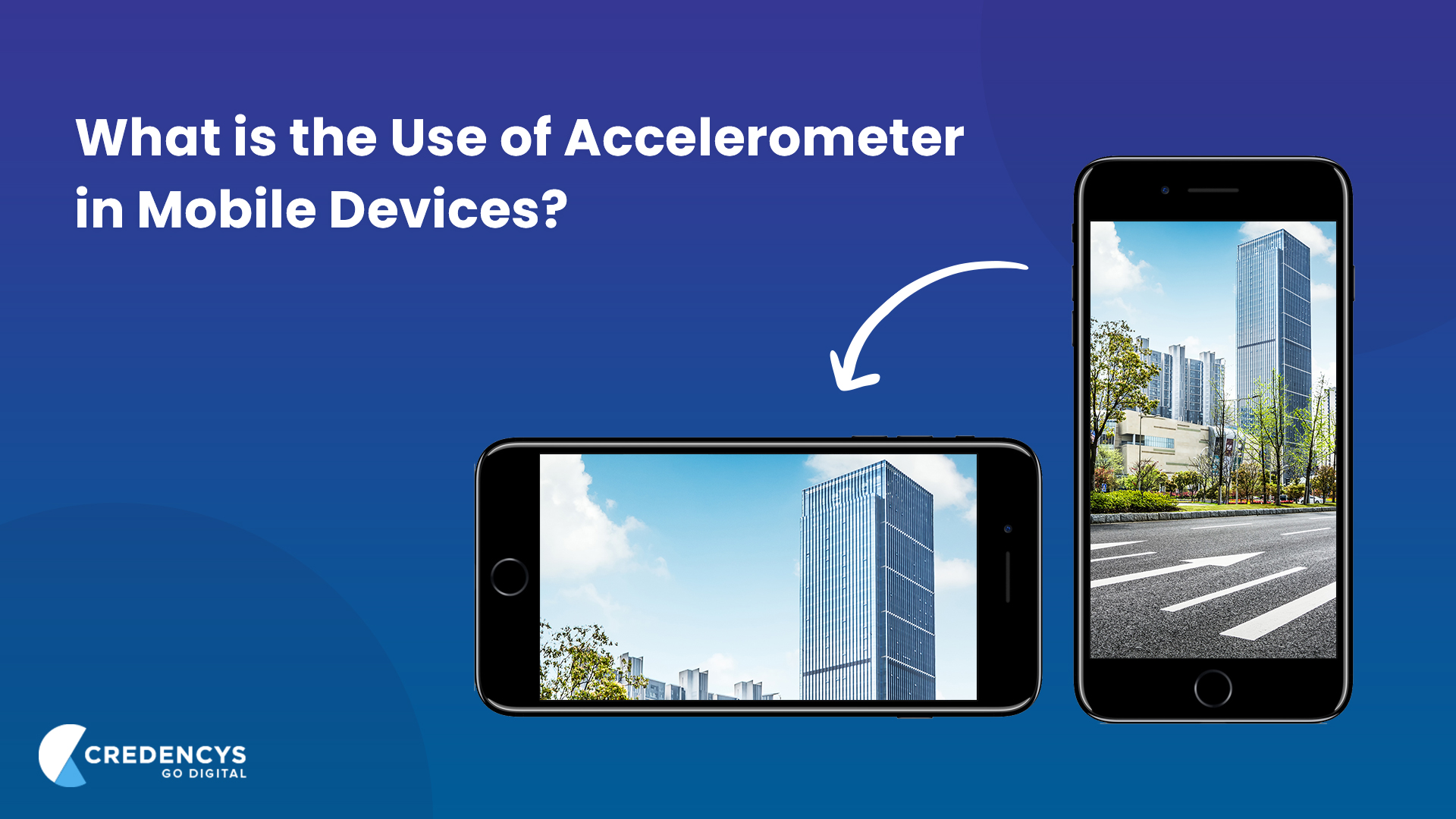

Image from Insights by Credencys.

On some devices, detection is keyed to special tracking such as a pedometer. Another application is fall-detection. Wikipedia notes, “Apple has included an accelerometer in every generation of iPhoneiPad, and iPod touch, as well as in every iPod nano since the 4th generation.”

“Vibration Analysis Using Mobile Devices (Smartphones or Tablets),” by A. Feldbusch et al., Procedia Engineering, Volume 199, 2017, offered specifics: “The characteristics of accelerometers installed in smartphones differ from professional acceleration sensors used in vibration analysis. High-precision sensors have a resolution up to 10-9 g and a measuring range usually below ± 1 g. For smartphone technology miniaturization plays an important role as well as robustness, low energy consumption and low price. This comes with limitations of accuracy. In recent smartphones so called MEMS-Accelerometers (Microelectromechanical systems) with a resolution from 0.1 to 15 mg and a measuring range of ± 4 g (and more) are installed.”

Structural Challenges. Good News reports, “There is a global need for infrastructure monitoring to improve the resilience and longevity of bridges, buildings, and other structures—it’s pretty much a guaranteed applause-grabber in political debates in America, because the need is so great.”

Its report continues, “The structural health of bridges is usually visually assessed by engineers on-site, which is often time consuming and infrequent, or measured using static sensors incorporated into the bridge, which are expensive. Measuring the vibrational frequencies of bridges has previously been used to identify bridge damage and deterioration, but the data to support this approach have been limited.”

MIT Research. “Crowdsourcing Bridge Dynamic Monitoring with Smartphone Vehicle Trips,” by Thomas J. Matarazo et al., Communications Engineering, November 3, 2022, describes this novel expansion of data collection. From Good News: “A team at MIT developed an Android-based app that collects data while travelling across a bridge which they compared with traditional bridge-based sensors.”

“As data from multiple trips over a bridge are recorded,” said Dr. Paulo Santa, one of the researchers, “noise generated by engine, suspension and traffic vibrations, [and] asphalt, tend to cancel out, while the underlying dominant frequencies emerge.”

Image from Good News, November 4, 2022.

Methodology. “In the case of the Golden Gate Bridge,” Good News reports, “the researchers drove over it 102 times with their devices running and they used 72 trips by Uber drivers with activated phones as well. They then compared the resulting data to what had been collected by 240 sensors that had been placed on the Golden Gate Bridge for three months.”

Good News writes, “Results showed that data from the phones converged with that from the bridge sensors. For 10 particular types of low-frequency vibrations the engineers measured, there was a close match, and in five cases there was no discrepancy between the methods at all.”

Suspension vs. Concrete Spans. “However,” Good News notes, “because most bridges are not suspension bridges the researchers decided to test their method on smaller and more common concrete span bridges. To do so, they studied a bridge in Ciampino, Italy, comparing 280 vehicle trips over the bridge to six sensors that had been placed on the bridge for seven months.”

“Here,” it was noted, “there was a 2.8% divergence between what was recorded with the stationary sensors and the smartphone data, while shorter trip numbers created more divergence, suggesting more trips would create less.”

Future Research. Good News writes, “Architecture Professor at MIT Carlo Ratti said there are ways to refine and expand the research, for example by accounting for the effects of the smartphone mount in the vehicle and the influence of the vehicle type on the data.”

“It might not reach the accuracy that one can get using fixed sensors installed on a bridge,” says Professor Ratti, “but it could become a very interesting early-warning system. Small anomalies could then suggest when to carry out further analyses.”

Similar crowdsourced early-warning is already evolving in response to even more dramatic vibrations—earthquakes. ds
