STILL OFF-SCALE AFTER ALL THESE YEARS

AUTOMOTIVE ENTHUSIASTS of a certain age (and retentive memory) still celebrate the Tapley Meter. This British piece of instrumentation thrilled us no end when it measured that a car’s performance was “off-scale.”

m

Illustration by Leo Bestgen, R&T, April 1988. See http://wp.me/p2ETap-rO for other Bestgen whimsy.

Truth is, when introduced to R&T Tapley data back in the 1950s, I never understood what off-scale performance implied. But it sounded impressive, and I suspected that no car I drove would qualify.

Since then, I’ve learned that a Tapley Meter measures the change in speed. It’s an accelerometer/decelerometer (i.e., measuring positive or negative change, respectively). What’s more, it measures these dynamic phenomena in the most basic of ways: with a pendulum.

m

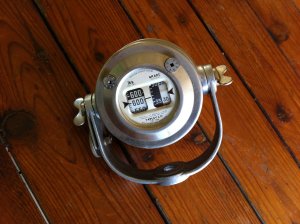

An original Tapley Meter. Similar equipment is still available from Tapley Instrumentation, a division of Bowmonk Limited, www.tapley.org.uk.

Within a Tapley Meter is a finely balanced pendulum that rotates its readout scale through a quadrant gear train. To damp out vibration, the gizmo is filled with a temperature-stable liquid.

Accelerate and the pendulum swings aft; brake and it swings forward.

m

Don’t try this at home, kids. We’re professionals.

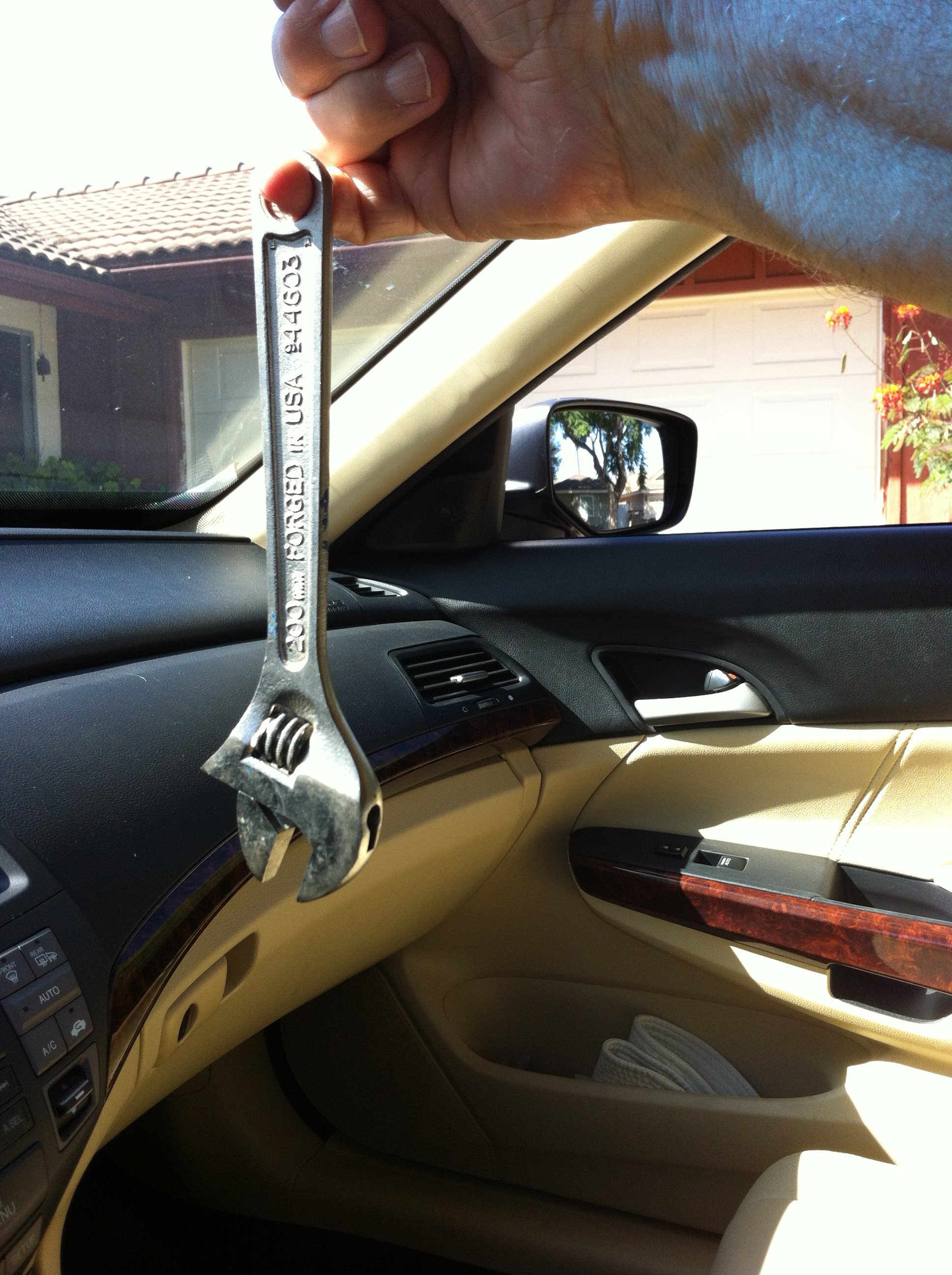

Imagine a loosely held wrench swinging longitudinally as a car speeds up or slows down.  (Be careful it doesn’t bean you in the beak.)

The classic Tapley Meter has dual calibrations, lb/ton and percent grade. The first gives an indication of the car’s ability to lug itself around; the second, its ability to climb hills.

R&T chose to report its Tapley data in lb/ton, which explains the logic of Leo Bestgen’s whimsical Jaguar being pulled by a butcher scale. Suppose, for instance, the Tapley Meter read 240 lb/ton when the 3000-lb Jag accelerated full-bore in top gear. Exercise: Justify that the butcher scale would have read 360 lb.

Newton’s Second Law of Motion, F = MA, states that force equals mass times acceleration. Thus, with a little algebraic hand-waving,  F/M = A, and hence 240/2000 would equal an acceleration of 0.12g.

So what about “off-scale”? The Tapley Meter’s highest calibration is 600 lb/ton, equivalently 0.3 g or, if you prefer, 0.3 x 32.2 ft/sec/sec = 9.66 ft/sec2. Any acceleration greater than this would be in the Tapley’s off-scale region.

m

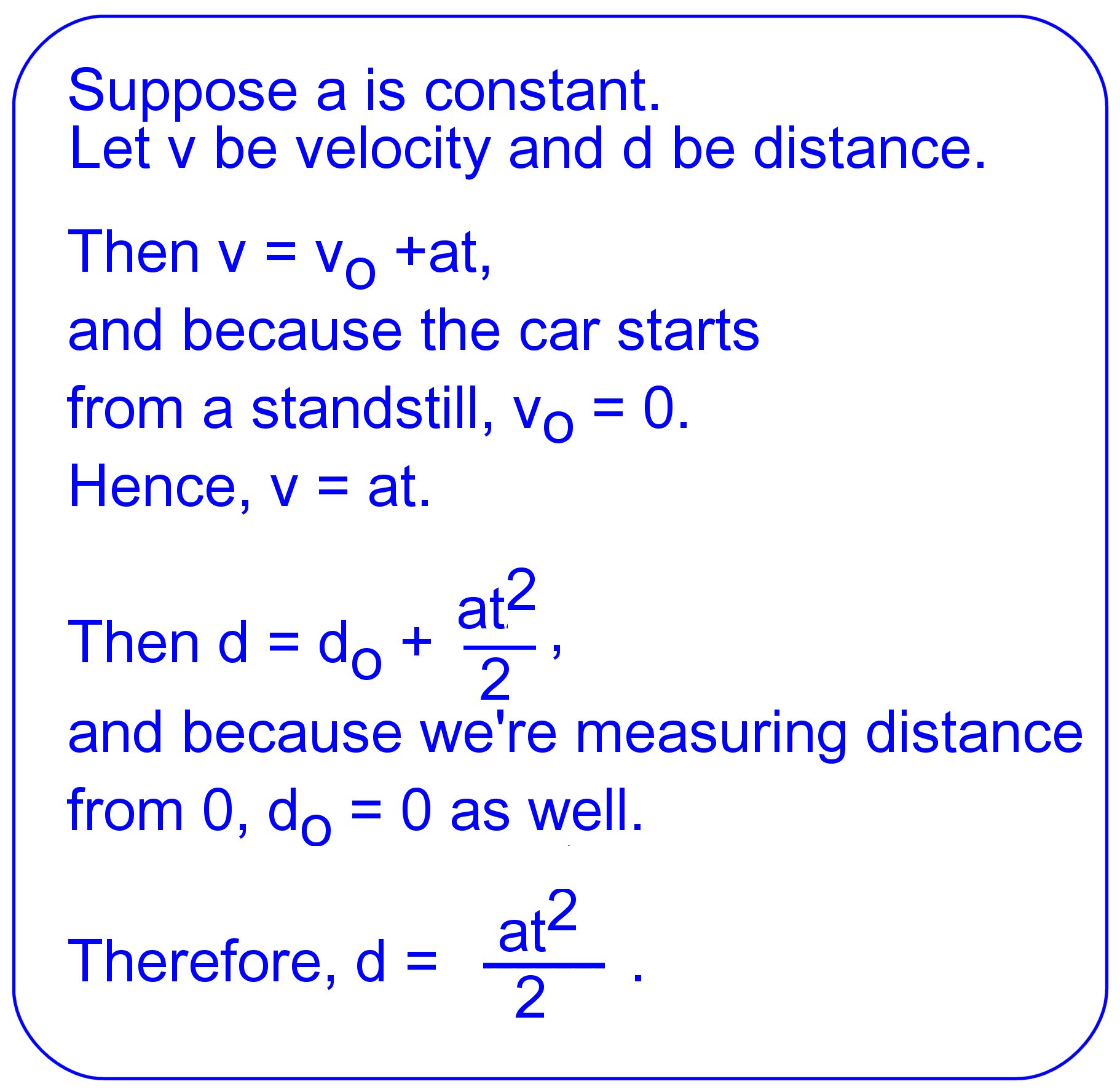

The mathematics of acceleration, velocity and distance.

Back in 1988, I invoked a little calculus to analyze how quick this is. A constant acceleration of 0.3g (9.66 ft/sec2, 6.59 mph/sec) results in a 0-60-mph time of 9.1 seconds and, if continued long enough, quarter-mile postings of 16.5 seconds at 108.7 mph.

Cars of the era are put in perspective by my observing back then, “Not bad performance.” Today, I note that a Toyota Prius does 0 to 60 in the mid-9s and the quarter mile in around 17 sec.

Returning again to April 1988, I observe there was one test vehicle decidedly off-scale and another at the other extreme: See http://wp.me/p2ETap-13X for details of the BAC Concorde Supersonic Transport and Cunard Line Queen Elizabeth 2.

m

The “Sainted R&T Tapley Meter” was an important part of each evaluation.

As stated in April 1988 Technical Tidbits (and cribbed here), things are “still off-scale after all these years.” ds
