THERE ARE blessedly few of us these days who remember the slide rule, and fewer still who understand its workings. So why not join this hardy band and learn some arcane knowledge?

You need grapple with only two mathematical facts: Addition can be represented geometrically. And—rather more subtly—the logarithm of a product is equal to the sum of the logarithms.

I’ll expand on the first with a mathematical example. I’ll sidestep the second entirely with an example of mathematical humor.

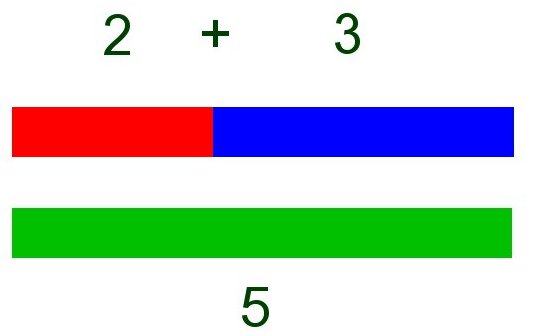

Suppose I have one stick that’s 2 units in length and place it end to end with one that’s 3 units in length. There’s no surprise in noting that these two, end to end, equal one that’s 5 units in length. Numerically, 2 + 3 = 5. Geometrically, the same thing.

In general, if a stick of A units in length is abutted with one of B units, the combined length is the same as a stick that’s (A + B) units long.

Okay, on to logarithms. If you’re forced to think of them at all, think of logarithms as the reverse of exponents. That is, B^{A} = C has the logarithmic equivalent log_{B} (C) = A. And just as the exponent rule says B^{A }x B^{D }= B^{A+D}, so it is that log_{B }(A x D) = log_{B} (A) + log_{B} (D).

A math joke: The *Viperidae* family of adders was threatened by extinction because they weren’t reproducing. A mathematician built them tables made of logs. Why? Because with log tables, adders can multiply.

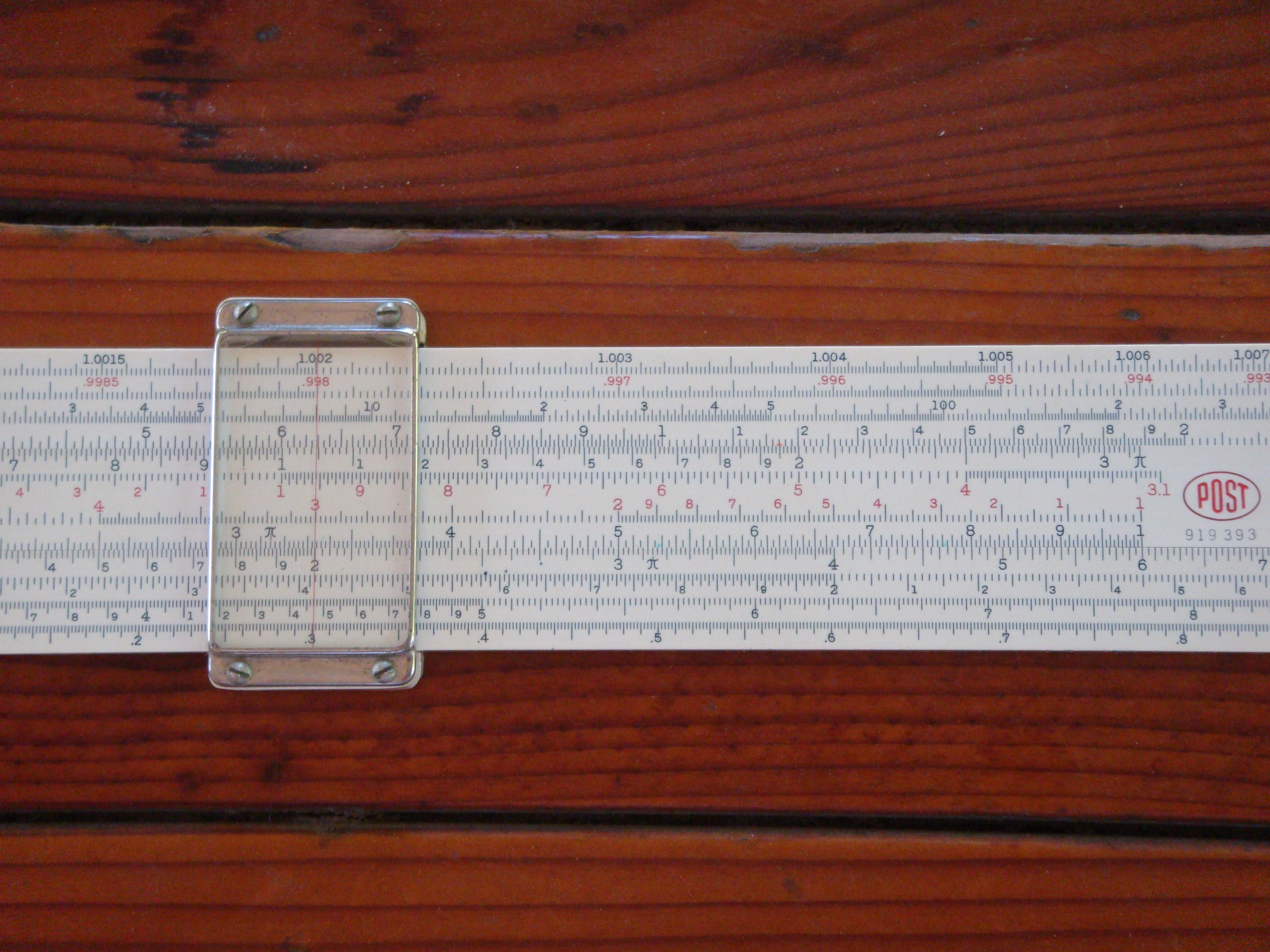

And so it is with a slide rule. Its numerical scales are arranged logarithmically, the basic C and D scales reading from 1 to 10, the CI scale inverted and running from 10 to 1. There’s a sliding hairline cursor as well.

To multiple 2 x 3, say, set the cursor on the D scale’s 2. Slide the CI scale until its 3 aligns with the hairline, thus adding 2 logarithmic units on the D scale to 3 logarithmic units on the CI scale, end to end. Your answer 6 is at the end of the CI scale.

Wait a second! I could’a done that in my head!

True, but what about 2.18 x 3.52? My slide rule shows it’s around 7.67. (My iPhone gets precisely 7.6736—but, no fair, we’re talking non-electronics here!)

To divide 3 by 6, align the cursor to 3 on the D scale and slide the C scale until 6 coincides with the hairline. The end of the C scale is your answer. Note, you must recognize it’s 0.5, not simply 5. That is, slide rules give numerical answers; you decide where decimal points go.

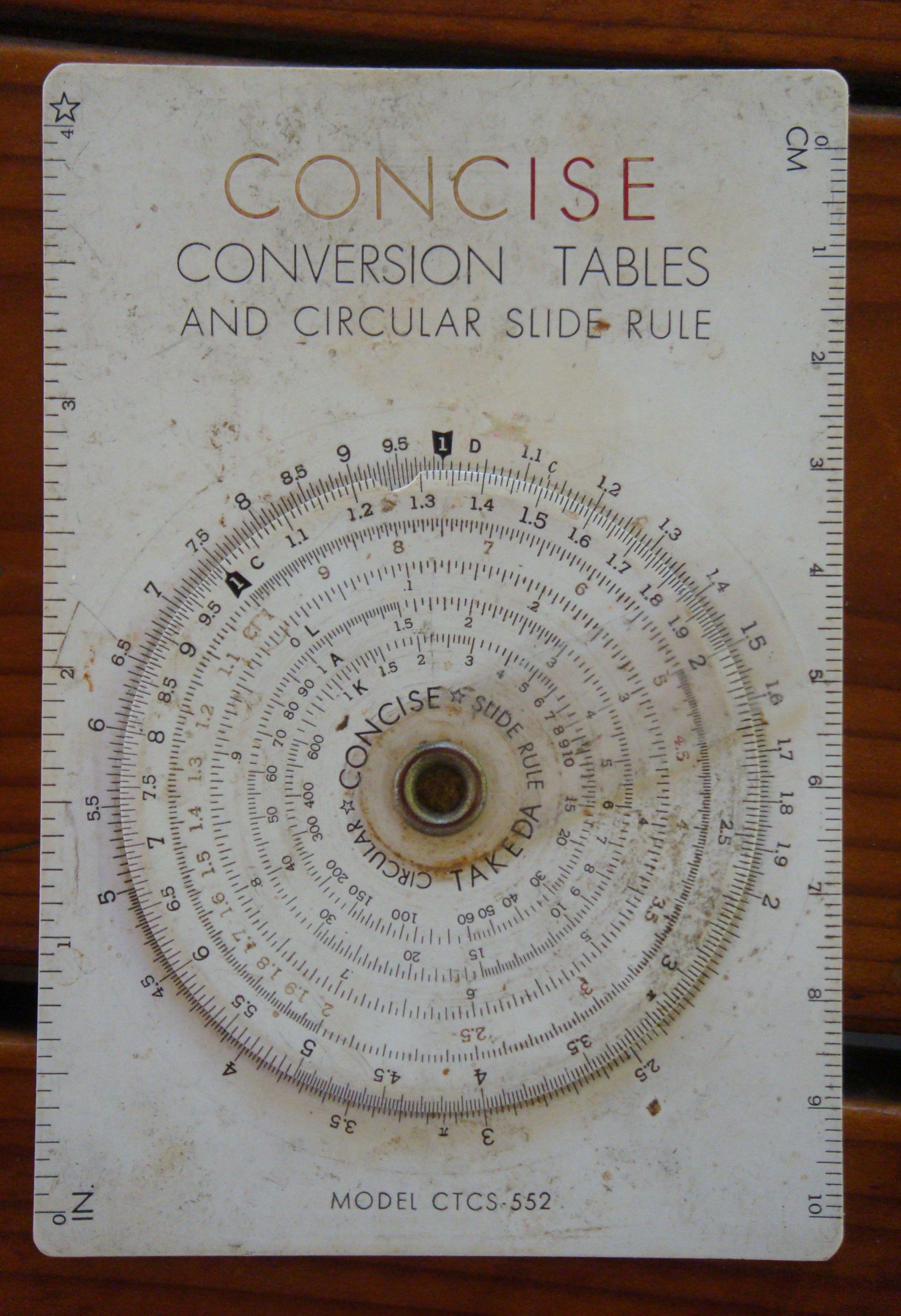

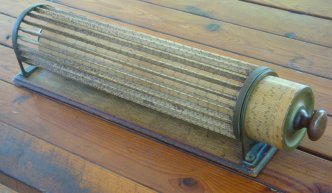

Circular slide rules are compact. But my favorite slide rule is a cylindrical one patented by civil engineer Edwin Thacher in 1881. It’s about 20 in. overall, a rotating housing of 20 vanes containing a sliding and rotating cylinder.

The Thacher’s vanes and enclosed cylinder contain folded logarithmic scales. Together, the result is equivalent to a slide rule that’s 30 ft. in length. Readings are to 4-place accuracy—in some ranges, 5-place.

Of course, the digital age displaced all these devices as mere curiosities. But fascinating curiosities they remain. ds
