“NO LONGER ’20 YEARS IN THE FUTURE,’ ” writes Lindsay Brooke, Editor-in-Chief, in SAE International Automotive Engineering, February 2023. “Hydrogen and fuel cells are a vital, high-growth solution for carbon reduction across the transportation and other industry sectors.”
Energy and Replenishment. Brooke writes, “For vehicle engineers and customers, hydrogen fuel cells—with an energy-to-weight ratio 10X greater than lithium batteries—offers some key practical advantages over battery-electric propulsion.”
Also, he notes, “Time required to fill a 350- or 700-bar (5000 or 10,000 psi) high-pressure storage tank is as quick as topping up with gasoline or diesel. And compared with the ponderous mass of large-EV battery packs—3000 lb. in GM’s Hummer EV and an estimated 10,000 lb. in Tesla’s Class-8 Semi—a fuel-cell propulsion system with similar performance is a veritable lightweight.”
A Logical Fit for Commercial Vehicles. Brooke observes, “Daimler, Hyundai, Kenworth (using a Toyota fuel-cell stack), Nikola and Volvo have pilot fleets of hydrogen fuel-cell Class-8 semitractors in haulage operations. Fuel-cell power is beginning to appear in medium-duty trucks chassis, buses (where China leads) and up the GVW scale to huge mining machines, railway locomotives and ships.”
“In the light-duty pickup segment,” Brooke notes, “battery-electric has thus far been the clean-propulsion choice.” In emphasizing “thus far,” Brooke cites Ford CEO Jim Farley: “If you’re pulling 10,000-plus pounds, an electric truck is not the right solution. And 95 percent of our [Super Duty] customers tow more than 10,000 pounds. This is a really important segment for our country, and it will probably go hydrogen fuel cell before it goes pure electric.”
Cars As Well. Though often envisioned as a Battery Electric Vehicle niche, even cars are seen as fuel-cell candidates. Brooke recounts, “Honda, for example, is collaborating with GM (which has built prodigious intellectual property in the field over 50 years) on fuel-cell development. Honda will launch U.S. production of hydrogen fuel-cell vehicles in 2024; the first model is a plug-in hybrid based on the new CR-V. BMW, which like Honda is following a multi-modal propulsion strategy, is building a pilot fleet of 100 iX5 Hydrogen SUVs.”
H2 in IC? The mid-’70s Billings Cadillac Seville was an early internal-combustion application of hydrogen fuel. From time to time the idea of H2 IC resurfaces, though efficiency is a shortcoming: Fuel-cell pioneer Bryan McCormick said, “One reason fuel cells match so well with H2 is that they’re at least 2X more efficient than combustion engines. So they make up in efficiency what they lose in more-challenging [fuel] storage.”
Fuel-cell Cost Reductions. Brooke notes that engineers “believe most of the technological hurdles of the stack and its chemistries and ancillaries have been overcome.” Yet, cost of platinum has been considered a 40 percent hit on large-volume production, and Brooke says, “innovators are looking to reduce the platinum loading per fuel cell. One of them is Pajarito Powder, a manufacturer of fuel cell catalysts and electrolyzers.” A catalyst powder co-developed with Los Alamos National Laboratory and the University of New Mexico may reduce fuel cell catalyst costs by half. Brooke notes that “Hyundai is helping to fund a catalyst manufacturing facility that will use the company’s Varipore process.”

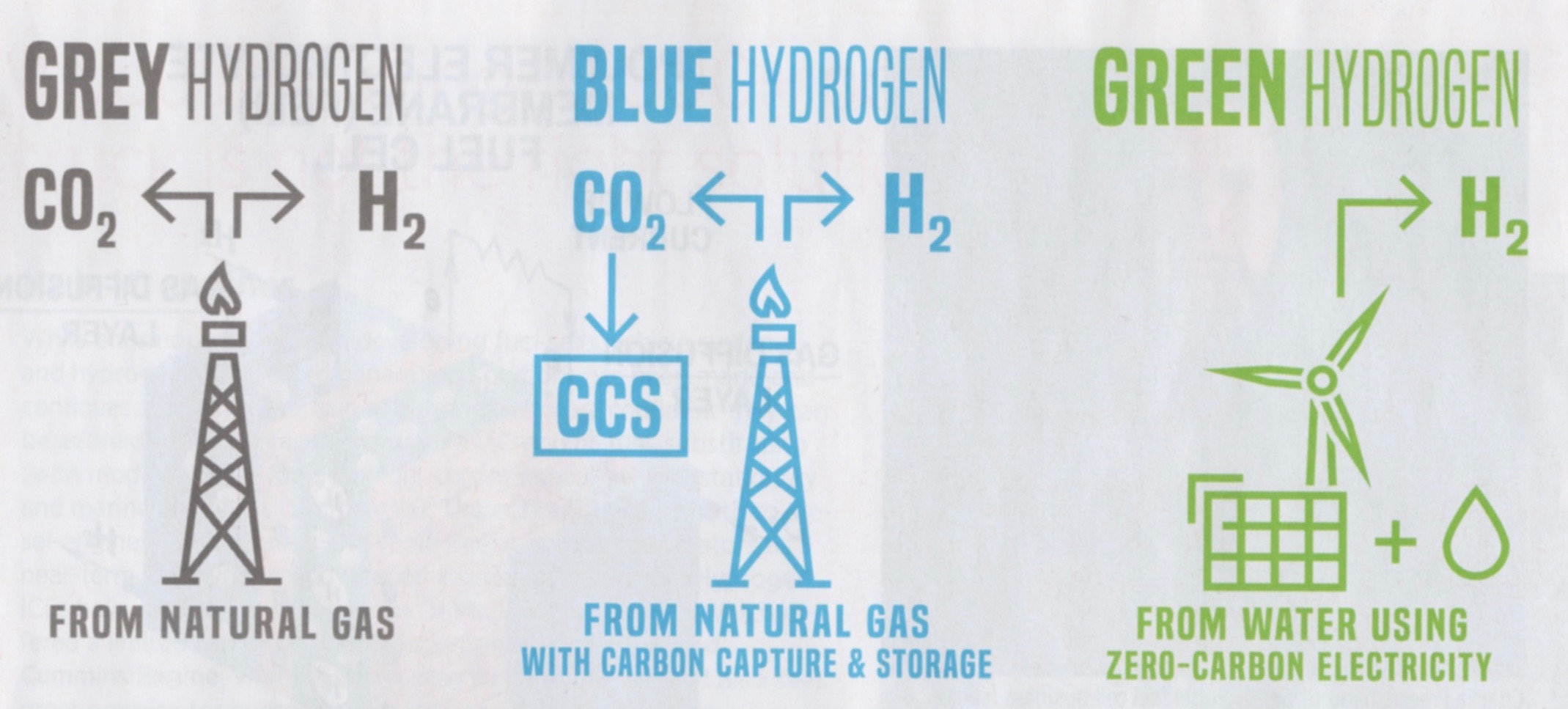

Whence the Hydrogen? Brooke writes, “Hydrogen is primarily produced by the reforming of conventional hydrocarbons, typically natural gas (the so-called ‘grey’ hydrogen in the accompanying graphic).
Electrolysis (the classic science experiment of splitting water into hydrogen and oxygen), Brooke notes, “is gaining share in the hydrogen-production market due to its ability to generate the gas carbon-free if renewably-sourced electricity is employed.”
Green hydrogen is the goal; blue hydrogen’s carbon capture and storage is an intermediate.
Timing. Charlie Freese is executive director of GM’s Global Fuel Cell organization. He told Brooke, “We always worried about whether hydrogen could be coming down to where it’s actually competitive with offsetting the petroleum-based fuels. There are pathways to do that now.” ds
© Dennis Simanaitis, SimanaitisSays.com, 2023
