THE DURAY MILLER—AND ETTORE’S DOHC

FORTUNES INTERTWINED for an Italian-born Alsatian, a Wisconsin-born Californian and a Cleveland kid who changed his name in tribute to a famous race driver. The personages, respectively, are Ettore Bugatti, Harry Miller and Leon Duray.

M

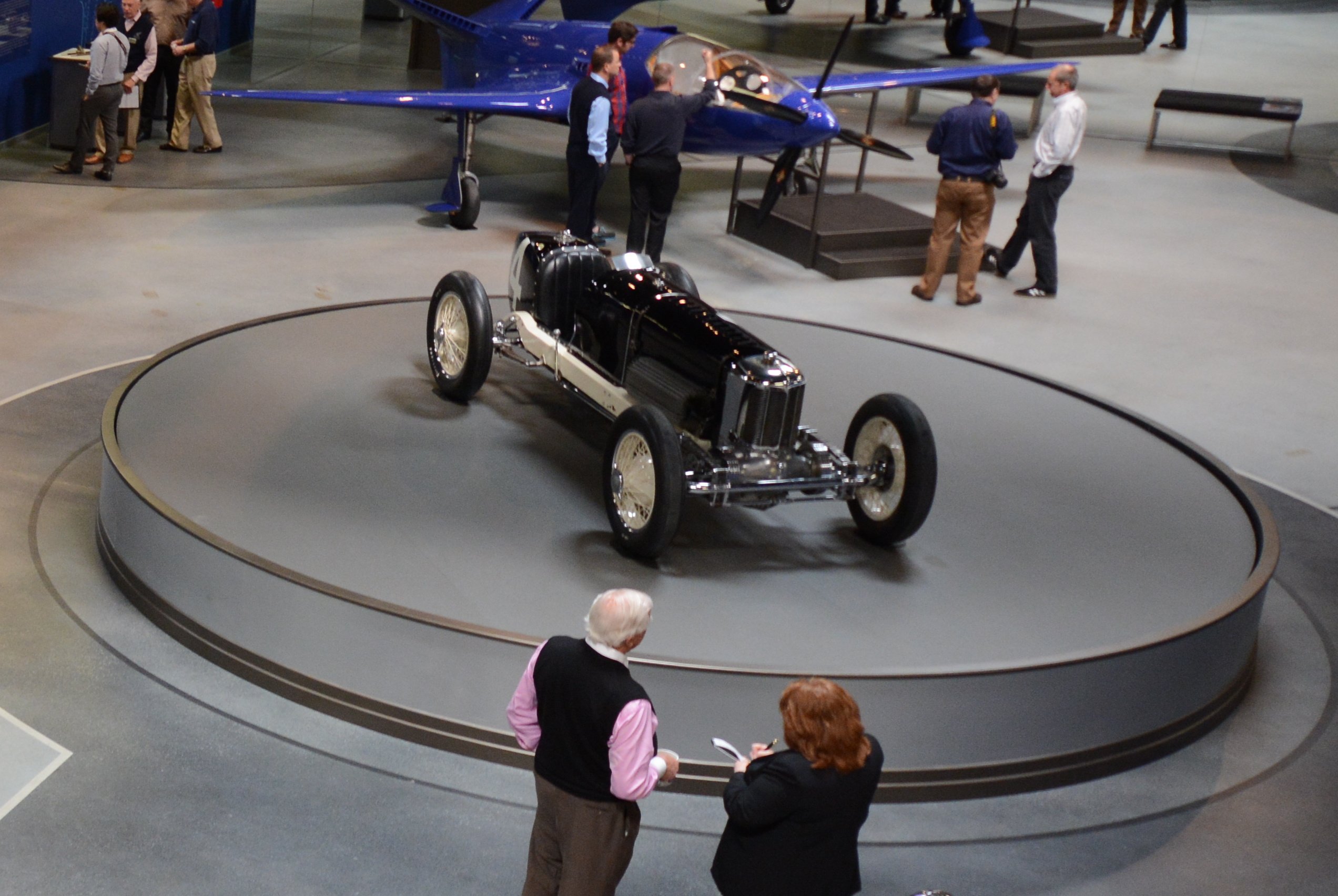

1928 Duray Miller 91 Indy Special. Image by Tom Wilson.

An essential element of this tale is the 1928 Miller 91 Indy Special currently on display at The Mullin Automotive Museum in Oxnard, California. See http://wp.me/p2ETap-1Zb for details of this exhibition.

m

Leon Duray (1894 – 1956) in the Miller 91 Indy Special. This and images following from Classic Cars in Profile, Volume 4, Doubleday and Company, 1968. An amazon.com link: Classic Cars in Profile, Vol. 4: Profiles Nos. 73 – 96

Cleveland-born George Stewart began his driving career in “scripted” car races at fairgrounds. To enhance the show, he adopted the moniker Leon Duray; this, in tribute to Arthur Duray, a driver of the era who had already raced in Europe and placed second at the 1914 Indianapolis 500 (only its fourth running). Stewart’s legal name change followed an incident in New Orleans where French-speaking dignitaries discovered the ruse.

Leon’s first Indy 500 was in 1922. His five-year record of Indy placings during 1925 – 1929 went unparalleled until 1990. Even today, Duray and his Miller 91 Indy Special remain third in the record books in this regard.

m

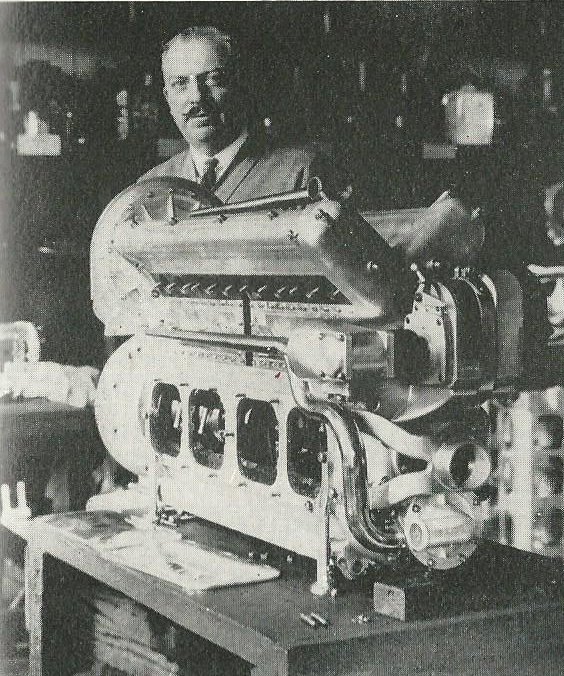

Harry Arminius Miller (1875 – 1943) with an engine similar to that powering the Duray Miller 91 Indy Special.

In 1915, Harry Miller and his shop foreman Fred Offenhauser improved upon the best elements of an already successful 1913 Peugeot racing engine. In particular, the Miller 181-cu.-in. straight-eight had double overhead camshafts and other features that were to recur all the way to the perennially potent Offenhauser inline-four.

m

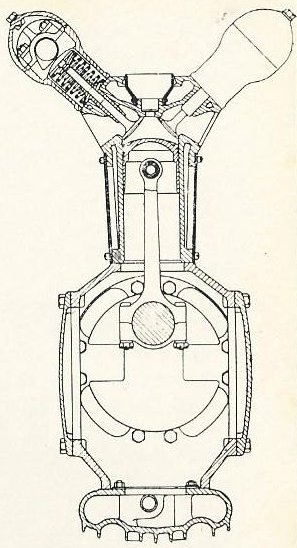

The Miller 91 straight-eight had hemispherical combustion chambers and a barrel-shape dry-sump crankcase.

Displacement limits reduced Miller’s racing engines to 121 cu. in. and, for 1926 to 1929, to 91 cu. in., thus the Miller 91. Power of the 121 came tantalizingly close to 1 hp/cu. in., 120 hp at 5000 rpm.

m

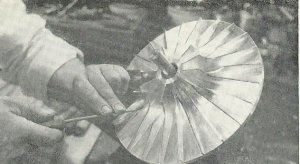

A supercharger impeller of a Miller 91 engine turned 40,000 rpm at a crankshaft speed of 8000 rpm.

Miller tried supercharging the 121 with devices of centrifugal type. All Miller 91s used these centrifugal blowers to produce 250+ hp at more than 8000 rpm, amazingly greater than 2.7 hp/cu. in.

Miller 91s took the first four places of the 1926 Indy 500. In both front-wheel- and rear-wheel-drive configurations, they came to dominate racing in America until the expiration of the 91-cu.-in. formula in 1929.

m

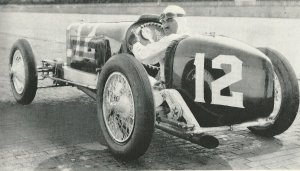

Leon Duray in his Miller 91 at the 1928 Indy. The supercharger intercooler projecting on the driver’s right was of Duray’s own design.

In 1929, the Packard Cable Company sponsored a trio of Miller 91s, two front-drive versions driven by Duray and Ralph Hepburn and a rear-drive counterpart for Tony Gulotta. Duray took the front-drive cars on a European tour, where he set records at France’s Montlhéry circuit outside Paris, then ran at the Monza Grand Prix in Italy.

Duray broke the Monza lap record—and then both cars. The race went to Achille Varzi and his Alfa Romeo, but Ettore Bugatti was sufficiently impressed by the Millers to offer Duray a deal: swap them for a trio of Type 43 Bugattis.

Here, the story gets a bit murky, clouded in part by Bugatti chassis numbers and an entirely different Leon Duray living in Paris at the time. See http://goo.gl/wX0B21 for details.

One thing is certain: Bugatti got Duray’s Miller 91s. Proof is evident in his double overhead camshaft designs beginning with the Type 50. It’s easy to recognize the dohc artistry of Harry Miller. ds

© Dennis Simanaitis, SimanaitisSays.com, 2014

7 comments on “THE DURAY MILLER—AND ETTORE’S DOHC

  1. Peter Ginkel
    April 2, 2014

    Dennis,

    Looking at the Miller 91 engine cutaway, I have a question.

    With wide included angle between the valves and an integral head/block casting, how do you get the valves into position? Did they press in the valve guides after the valves were in place?

    Pete Ginkel

    • simanaitissays
      April 2, 2014

      Hi, Pete,
      I suspect the answer may be in Griff Borgeson’s fine book “The ClassicTwin Cam Engine,” my copy of which is currently in storage. Griff also wrote the Miller Straight-Eight Classic Car Profile cited here.

  2. peter giddings
    August 2, 2014

    hello dennis. I have some footage(possibly unseen before) of ” Duray” at indy in 1929 with sound! Cheers peter

    • simanaitissays
      August 2, 2014

      Hello, Peter,
      The Duray film clip sounds fantastic. Would you want to share it with our (small but select) website readers?
      I can be reached at EngEd@aol.com.
      ds

      • Mat Hersman
        July 14, 2015

        HI, My name is Mat Hersman. I am the grandson of Leon Duray’s stepson (Glen Hersman). I would love to see the footage you have of the 1929 Indy. Please share.

        Also, It was great to se the Miller at the Mullin in Oxnard last year surrounded by all the other great cars!

        l5cygx@gmail.com

      • simanaitissays
        July 14, 2015

        Hello, Mat,
        I agree, a fabulous car and heroic driver.
        By the way, I have no Indy footage personally. Anything I’ve seen I found Googling, seeking videos or YouTubes.

  3. Harry Hurst
    December 27, 2016

    When I read Borgeson’s book on American Racing Cars, the last chapter dealt with the Packard Cable Miller that, I believe he owned and resorted. He loaned it to the LA Historical Museum and somehow lost control of it. Did you ever do an article on this topic?
